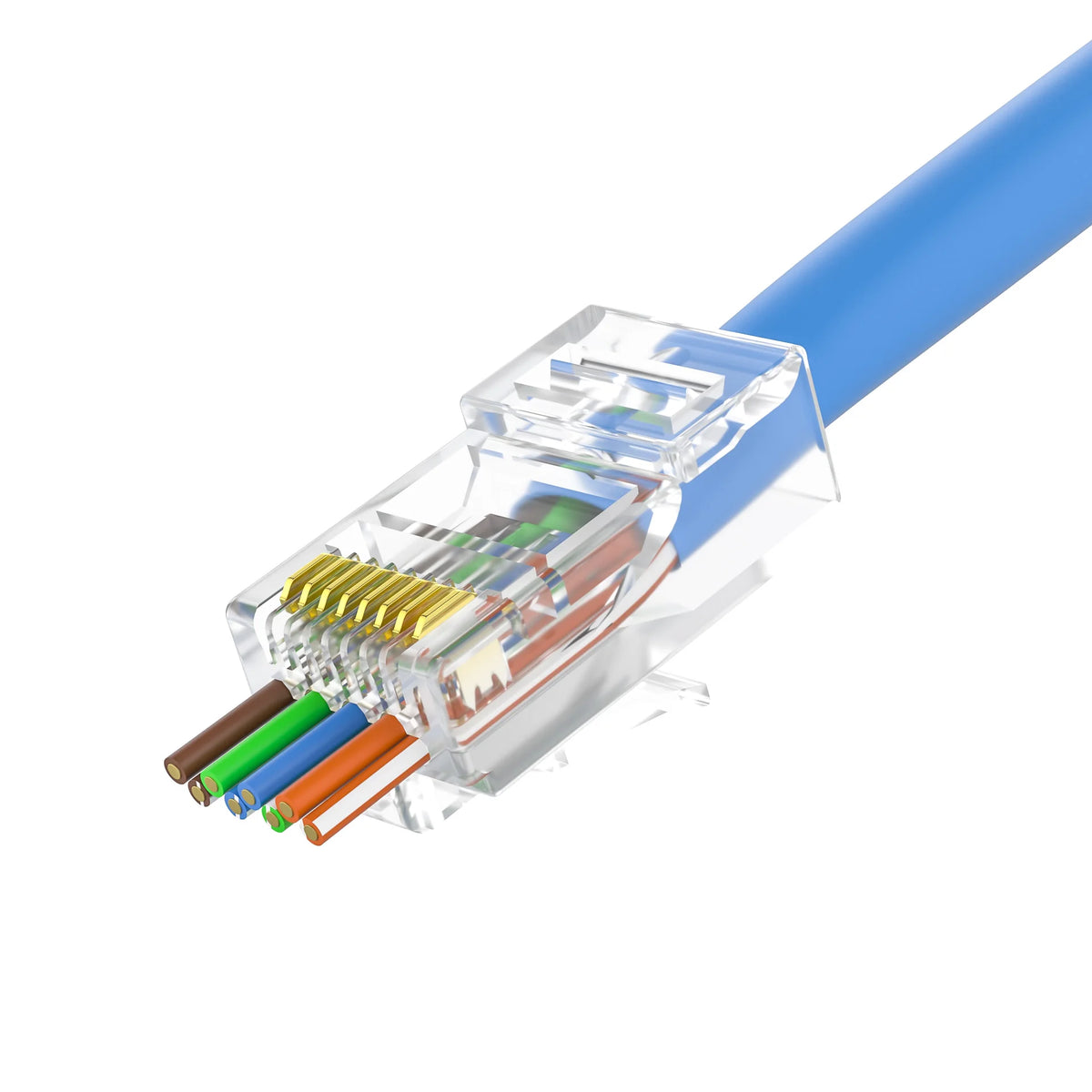

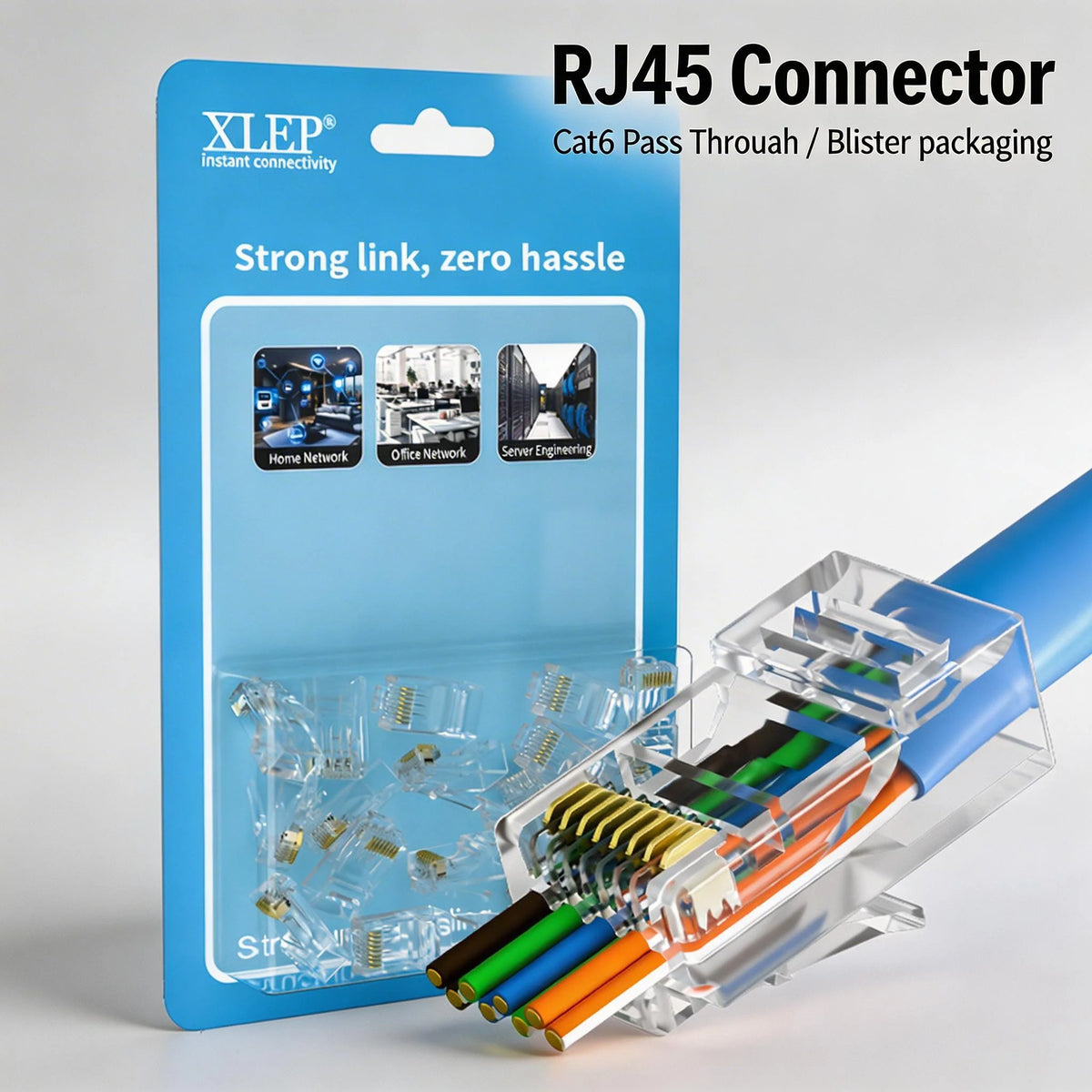

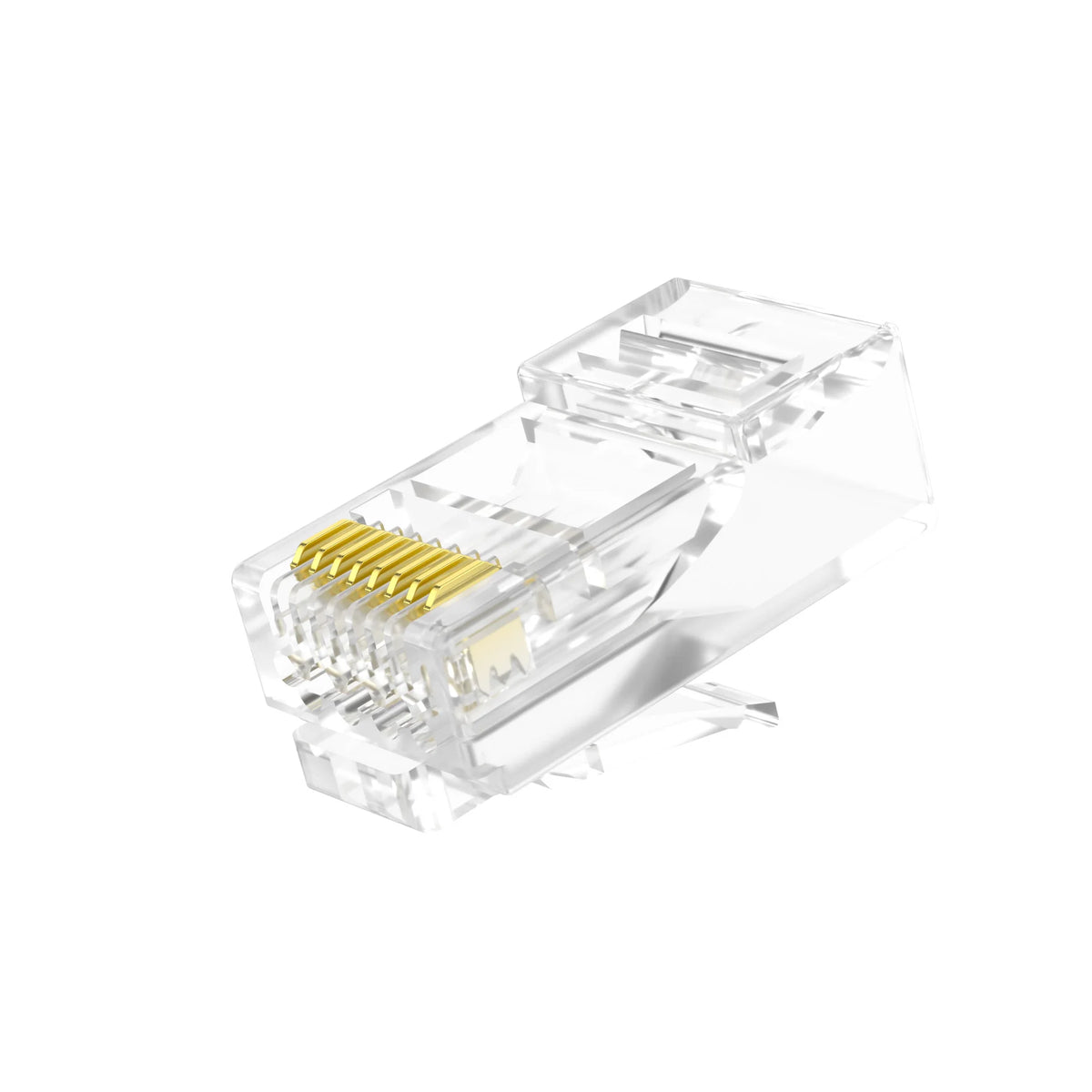

The XLEP XL-560B is a transparent Cat6 RJ45 pass-through modular plug with an 8 pin layout. The wire slides right through the connector so you can confirm the color sequence before crimping, while gold plated contacts keep the finished link reliable.
Key Features

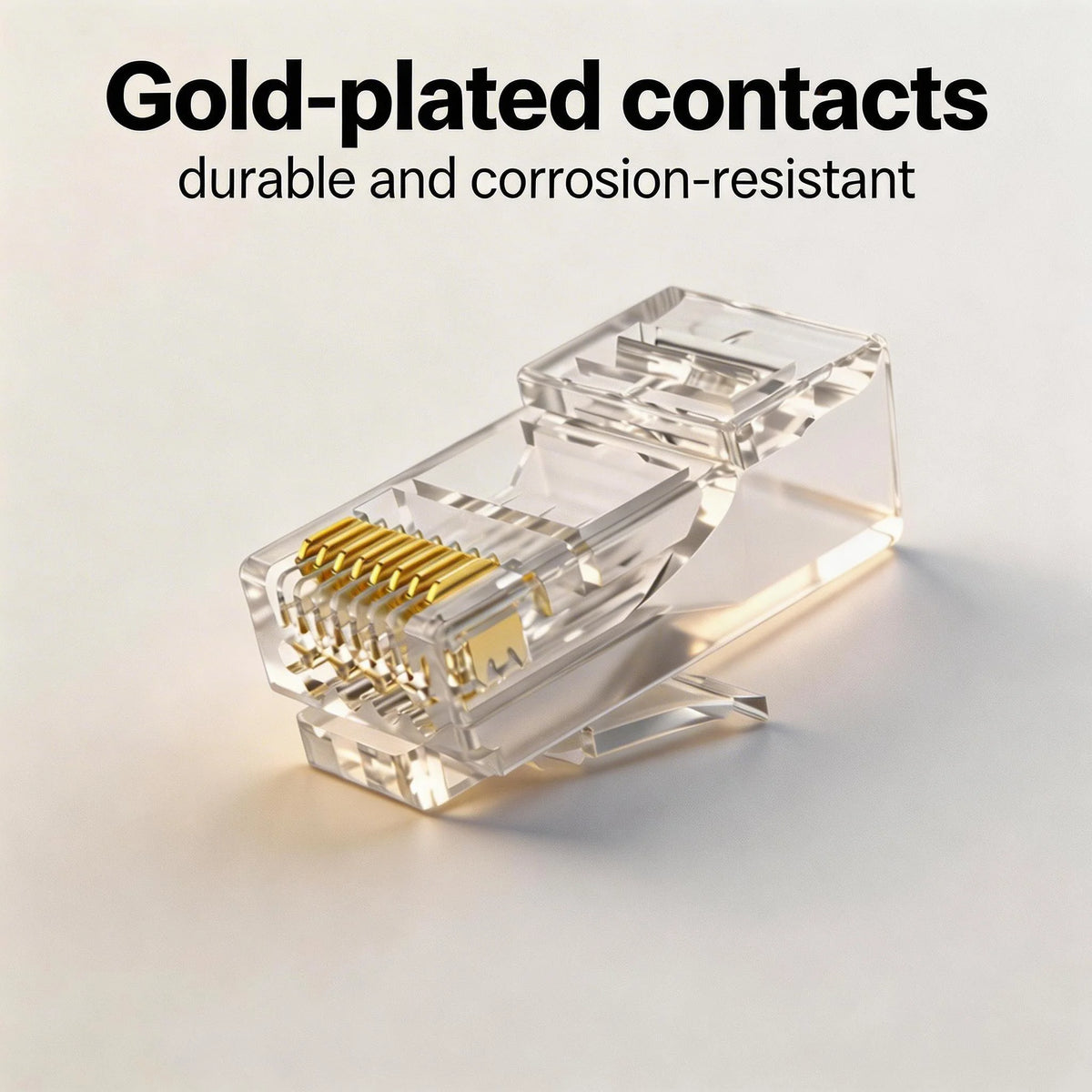

Premium gold plated contacts offer superior conductivity and corrosion resistance over thousands of mating cycles

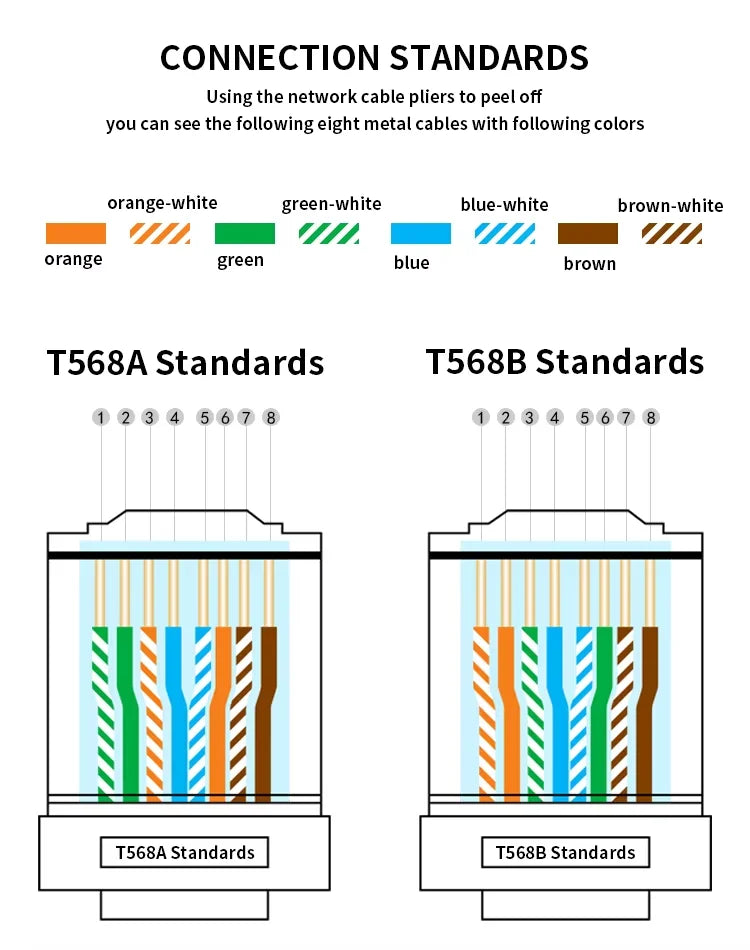

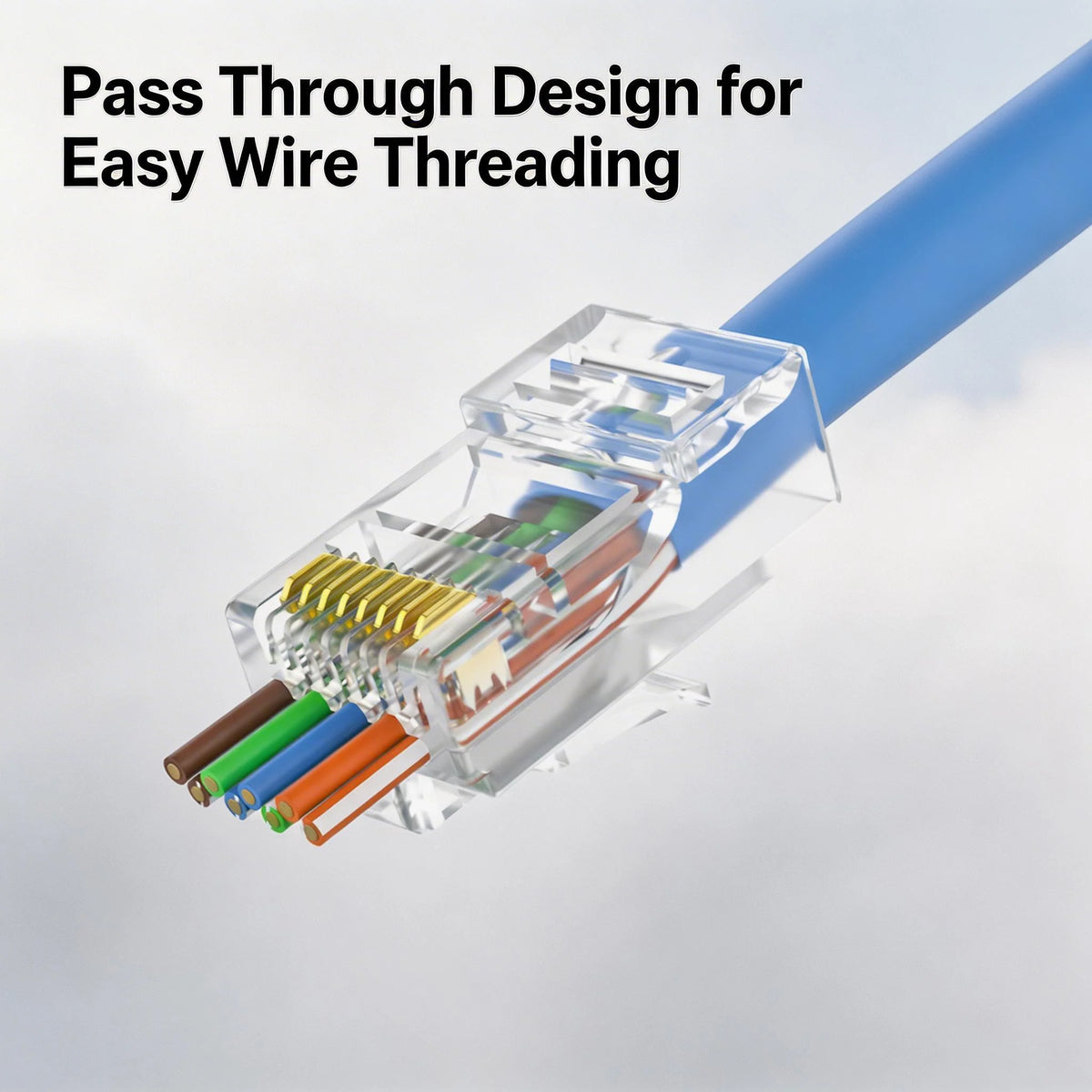

Through-hole pass-through design lets wires slide completely through the connector for easy verification of color sequence and simplified termination
Engineered specifically for Cat6 standards with an optimized internal structure that reduces insertion loss
High-strength PC material withstands physical stress, bending and temperature variation without cracking
Transparent housing enables quick visual inspection of wire alignment before crimping
Reduces wiring errors and rework time on busy installation days
Compatible with both solid and stranded Cat6 cables
Robust strain relief design protects the cable entry point from tension and vibration to extend connection life
Specifications
Brand: XLEP
Model number: XL-560B
Type: RJ45
Performance category: Cat6
Number of positions: 8 pin
Contact material: copper
Contact area: gold plating 0.0254 um
Housing material: Makrolon PC
Shielded: no
Gender: male
Color: transparent
Rated current: 1.5A
Rated voltage: 120 V
IP level: IP20
Operating temperature range: -40 to 85 degrees C
UL flammability rating: UL 94-V0 or UL 94-V2
Certificate: ISO9001, UL, ROHS, REACH

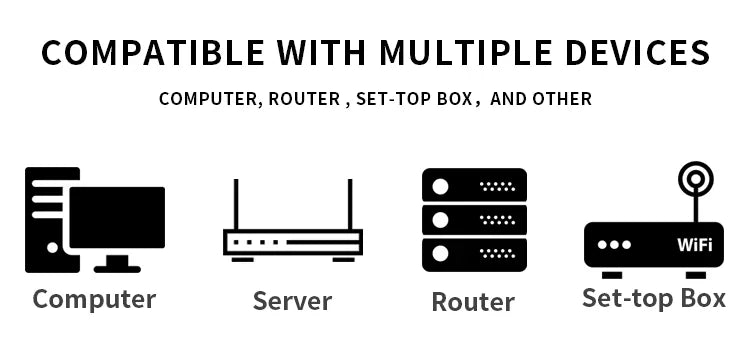

Application: PCB, cable, communication
Package weight: 0.1 kg
Ideal For
Data center, office and industrial network wiring on Cat6 UTP cable, where pass-through plugs make terminations faster and easier to inspect.
